Diagnostics tab

BARR/CHANNEL-OUT

Use this tab to run adapter diagnostics. You can access this tab from the BARR/CHANNEL-OUT utility. Windows 2000 and Windows XP users can also access this tab using Windows Device Manager.

Click an option you want to learn more about.

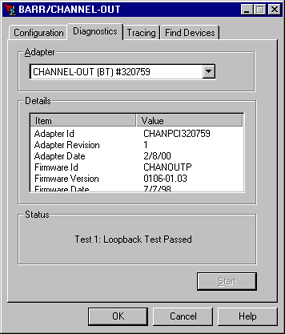

Diagnostics Tab

What do you want to do?

See also:


Adapter

Displays all installed CHANNEL adapters.

Details

Displays details about the adapter and the adapter firmware, including the ID number, version number, and date. If you call for Technical Support, you need to provide this information to the Barr support analyst.

Status

Displays status messages from the self-test.

Start button

Starts the self-test.
