Bitmap output tab

Barr EOM

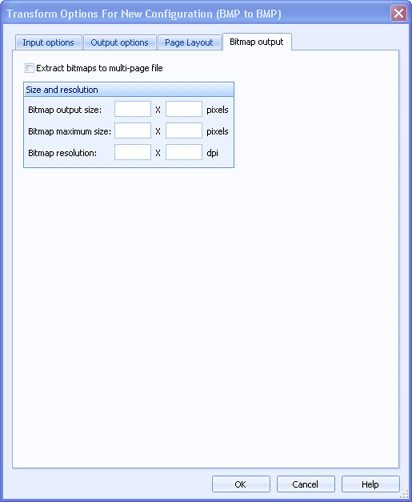

Use this tab to configure bitmap output transform options. You can access this dialog box when you configure a transform with a BMP output format. Transforms can be configured for business rule or output process actions or IPDS destinations.

Click an option you want to learn more about.

What do you want to do?

• Work with business rules

• Send documents to an IPDS printer

• Work with output processes

Extract bitmaps to multi-page file

Extracts bitmaps to a multi-page file. The output type must be a multi-page image format (for example, TIF).

Size and resolution

• Bitmap output size - Specifies the height and width of the output file in x and y directions (in pixels).

• Bitmap maximum size - Specifies the maximum size of the output file in x and y directions (in pixels).

• Bitmap resolution - Specifies the resolution of output file in x and y directions. The resolution is specified in dpi (dots per inch).
