EOM Console

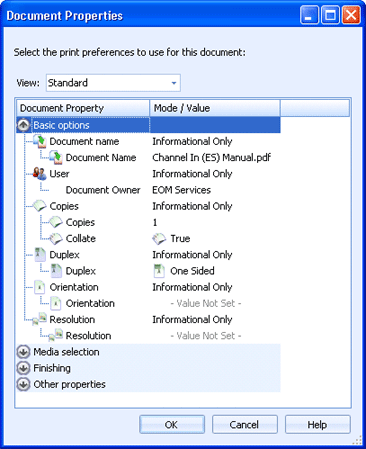

Use this dialog box to configure document properties. You can access this dialog box when you view/edit the properties of a document in a Documents grid or create a business rule action to set document properties.
Click an option you want to learn more about.
This option is only available when you are
viewing/editing
the properties of a document in a Documents grid.
Controls the document properties/print preferences that display in the grid. You can change the view based on the capabilities of the printer family and the specific destination where the document is being routed.
All – Displays all available document properties in the grid.
Standard – Displays only the document properties that the destination is capable of using. This is the default view.
Only Set Values – Displays only the document properties that contain a value (have been configured). This is an easy way to see the settings that are going to be applied to the document.
Configure the document properties by clicking directly in the grid.
Document Property column – Lists the property values that can be configured. The properties are grouped into the following categories: Basic options, Media selection, Document, Image adjustments, Finishing, and Other properties. To expand a category, click the down arrow next to a category name. To collapse a category, click the up arrow.
Under each category are the print preferences/document properties that belong to that group. The first node level in the categories determine the print preferences for the properties it contains. On the print preference node, you select how the property should be applied when a document is sent to a destination. Under each print preference are the parameters needed to generate that print preference.
Mode/Value column – Allows for configuring the document properties. For each property you can specify the mode and value.
Mode – Specifies how to apply the property value. This is the parent property to the property you are configuring.
Always Apply – Always applies the specified property value. Barr EOM will add commands to the print stream to enforce the print preference. If the document already contains commands for that print preference, Barr EOM will modify the commands to work with the printer family where the document is being sent.
Apply Conditionally – Applies the property value conditionally. Barr EOM will only add or modify commands for the print preference when the printer family that the document is destined for is different from the printer family the document was originally designed for.
Informational Only – Barr EOM makes no changes to the print stream when the document is sent to the destination. The value is for informational purposes only.
Value – Specifies the document property value. Click directly in the cell to change the value. You can use functions to insert and extract data as necessary.
