Extract Text tab - page mode

Business Rules

This tab is used when you create business rule actions to extract and burst using page mode. The Extract - Page Mode business rule action extracts text from printer ready documents using regions (rectangles). The Burst- Page Mode business rule bursts printer ready documents. Regions (rectangles) are used to determine burst conditions, or splitting is based on the desired output size of documents or the desired number of output documents.

Click an option you want to learn more about.

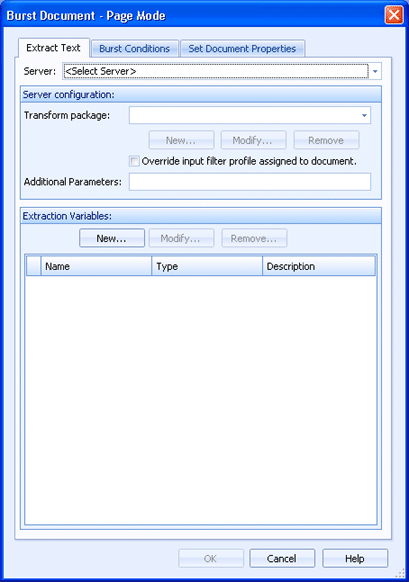

Extract Text Tab

What do you want to do?


Server

Specifies the licensed transform server that you would like to use

Server configuration

Transform package - Specifies the transform package. You can select a transform package from the list or click New to create one. You can also select a transform package and modify or remove it.

Override input filter profile assigned to document - Determines if you want to use the filter profile assigned to the document or if you want to use the filter profile configured in the transform package. Select the checkbox to use the filter profile in the transform package.

Additional parameters - Specifies any additional parameters needed for the document modification software.

Extraction Variables

The variables grid lists all of the defined extraction variables. You can add, modify, and remove variables using the buttons above the grid. There are two types of extraction variables, those used for bursting and those used to extract data.

New button - Creates a new extraction variable from the Text Extraction Variable Definition dialog box.

Modify button - Modifies the selected extraction variable from the Text Extraction Variable Definition dialog box. Note, once a variable of a particular type has been created, it cannot be changed to the other type.

Remove button - Deletes the selected extraction variable.
