Destinations

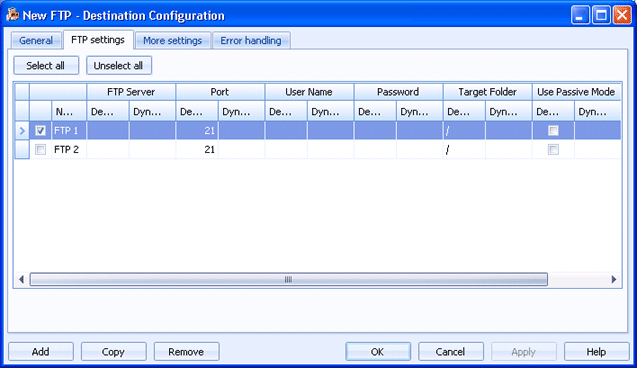

Use this tab to create multiple FTP destinations at once. Documents routed to this destination will be sent to the FTP servers specified.
Click an option you want to learn more about.
Selects all of the destinations listed in the grid.
Clears any selected destinations in the grid.
Click directly in the grid to configure the destination.
You can configure a default value and a dynamic override value for most options. Default values are used to manage the documents as they are being sent to the destination. You can choose to dynamically override the default values using document properties. To enter an override value, right-click in the desired Dynamic cell and select Insert Document Property. A menu containing all of the available properties displays. You can select a property from the list or type the property name. If a property is selected and it contains a value, that value is processed instead of the default value.
Name column - Specifies the name of the FTP destination.
FTP Server column - Specifies the FTP server, which can be an FTP or IP address.
Port column - Specifies the host's port number. The port number must be from 1 through 65536. The default value is 21.
User Name column - Specifies the user name that will be used when logging on to the host. If the host does not require a user name, you can leave this cell blank.
Password column - Specifies the user password that will be used when logging on to the host. If the host does not require a user password, you can leave this cell blank.
Target Folder column - Specifies the location on the host where the files will be placed. You must type the entire path of the folder or the path relative to the FTP user home directory (for example, if your home directory is at \FTP\UserName, you can either specify \FTP\UserName\MyDestFiles or \MyDestFiles).
Use Passive Mode column - Determines if the host mode will be passive or active. Selecting the check box selects passive mode, where the client creates a session to receive data. Clearing the check box will choose active mode, where the host creates a separate or new session to transfer data in response to a request from the client.
Adds a destination to the grid. A new row will appear at the bottom of the grid.
Creates a copy of the destination selected in the grid. A new row will appear at the bottom of the grid.
Deletes the selected destination.
