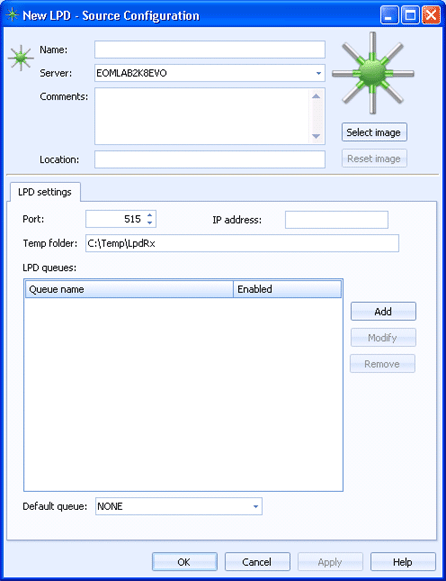

LPD settings tab

Sources

Use this tab to configure an LPD source. Documents received by this source will be routed to Barr EOM. You can access this tab when you create or configure an LPD source.

Click an option you want to learn more about.

What do you want to do?

• Receive documents from an LPD connection

• Work with sources

• Manage sources

Name

Specifies the name of the LPD source.

Server

Specifies the Barr EOM server where the Barr EOM Input Service is located for this source. The source does not have to be on the same server as the Barr EOM Input Service.

Comments

Lists any general comments about the source.

Location

Specifies any specific location information for the source.


Displays an LPD source image. To change the source image, click Select Image and choose the appropriate image file (.bmp, jpg, or png). The selected image will be compressed and scaled to 96x96 pixels. Changing this image will not change the smaller image that displays or the image that displays in the source tree. To change the image back to the default, click Reset Image.

Port

Specifies the host's port number. The default value is 515.

IP address

Specifies the host’s IP address.

Temp folder

Specifies the location files are transferred into during the LPD session. When the session is complete they are put in the file store.

LPD queues

Lists all defined LPD queues. Select the check boxes in the Enabled column to enable/disable the LPD queues.

Add button - Adds an LPD queue using the Add Queue Subdevice tab pages. You will need to configure the options on the LPD queue settings tab.

Modify button - Modifies the selected LPD queue.

Remove button - Removes the selected LPD queue.

Default queue

Selects the default queue which will process all requests made to unrecognized queues. All defined LPD queues are listed.
