Destinations

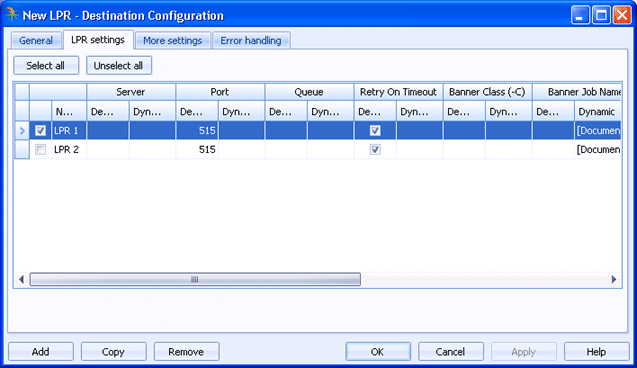

Use this tab to create multiple LPR destinations at once. Documents routed to this destination will be sent to the server and queue specified.
Click an option you want to learn more about.
Selects all of the destinations listed in the grid.
Clears any selected destinations in the grid.
Click directly in the grid to configure the destination.
You can configure a default value and a dynamic override value for most options. Default values are used to manage the documents as they are being sent to the destination. You can choose to dynamically override the default values using document properties. To enter an override value, right-click in the desired Dynamic cell and select Insert Document Property. A menu containing all of the available properties displays. You can select a property from the list or type the property name. If a property is selected and it contains a value, that value is processed instead of the default value.
Name column - Specifies the name of the LPR destination.
Server column - Specifies the IP address or equivalent host name of the print server where documents will be sent.
Port column - Specifies the port number for this LPR server. The default value is 515.
Queue column - Specifies the name of the print queue on the LPD server.
Retry On Timeout column - Specifies if you want to retry printing to this destination if a timeout occurs.
Banner Class (-C) column - Specifies the class name to be printed on the banner page. To print the banner page, the -L command must be used.
Banner Job Name (-J) column - Specifies the job name to be printed on the banner page. To print the banner page, the -L command must be used.
Banner User (-L) column - Causes the banner page to be printed. The user name can be omitted. The banner class (-C) and banner job name (-J) commands must precede this command in the control file to be effective.
Mail User (-M) column - Sends mail to the specified mailbox (example, mailbox@hostname) upon completion of the print job.
User (-P) column - Specifies the user identification of the entity requesting the printing job. This must be included in the control file.
Title (-T) column - Provides a title for a file that is to be printed with the "p" command code. It is ignored by all other printing commands.
Adds a destination to the grid. A new row will appear at the bottom of the grid.
Creates a copy of the destination selected in the grid. A new row will appear at the bottom of the grid.
Deletes the selected destination.
