Destinations

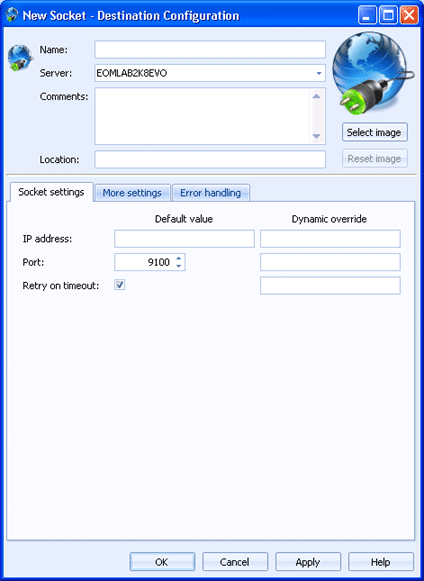

Use this tab to configure a socket destination. Documents routed to this destination will be sent to the IP address and port specified. You can access this tab when you create or configure a socket destination.
You can configure a default value and a dynamic override for each option. Default values are used to manage the documents as they are being sent to the destination. You can choose to dynamically override the default values using document properties. To enter an override value, right-click in the desired override text box and select Insert Document Property. A menu containing all of the available properties displays. You can select a property from the list or type the property name. If a property is selected and it contains a value, that value is processed instead of the default value.
Click an option you want to learn more about.
Specifies the name of the socket destination.
Specifies the Barr EOM server where the Barr EOM Output Service is located for this destination.
Lists any general comments about the destination.
Specifies any specific location information for the destination.
Displays a socket destination image. To change the destination image, click Select Image and choose the appropriate image file (.bmp, jpg, or png). The selected image will be compressed and scaled to 96x96 pixels. Changing this image will not change the smaller image that displays or the image that displays in the destination tree. To change the image back to the default, click Reset Image.
Specifies the IP address or equivalent host name of the print server where the documents will be sent.
Specifies the number that enables IP packets to be sent to a particular process on a computer. The default number is 9100.
Specifies if you want to retry printing to this destination if a timeout occurs.
