WebSphere MQ is a message queuing system designed by IBM that runs on many platforms such as Windows, Unix, Linux, and z/OS. Barr EOM provides an interface into that queuing system. Barr EOM can then communicate (send and receive messages) with other applications using WebSphere MQ.

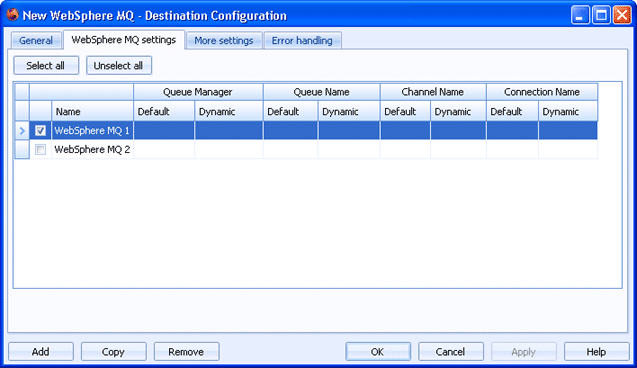

Use this tab to create multiple WebSphere MQ destinations at once. Documents routed to this destination will be sent as WebSphere MQ messages.
To use this destination, a WebSphere MQ client
must be installed separately.
Click an option you want to learn more about.
Selects all of the destinations listed in the grid.
Clears any selected destinations in the grid.
Click directly in the grid to configure the destination.
You can configure a default value and a dynamic override value for most options. Default values are used to manage the documents as they are being sent to the destination. You can choose to dynamically override the default values using document properties. To enter an override value, right-click in the desired Dynamic cell and select Insert Document Property. A menu containing all of the available properties displays. You can select a property from the list or type the property name. If a property is selected and it contains a value, that value is processed instead of the default value.
Name column - Specifies the name of the WebSphere MQ destination.
Queue manager column - Specifies the name of the queue manager. This must match the queue manager specified in WebSphere MQ. The queue manager administers the queues that have been created on it (these are known as local queues).
Queue name column - Specifies the queue name where messages sent to this destination will be stored. This must match the queue name specified in WebSphere MQ. The queue name along with the name of its queue manager, provides a unique address where messages can be sent.
Channel name column - Each WebSphere MQ queue manager has different types of connectivity options. Since Barr EOM uses TCPIP for the channel connection, you must specify the channel configured for TCPIP. You can get this name from the WebSphere MQ list of channels.
Make sure the SSL certificate required
option is not selected in WebSphere MQ. Barr EOM does not support this
at this time.
Connection name column - Specifies the connection name. The connection name is the IP address and (port) or DNS name for the server to which you are attempting to connect. Messages are transferred over the connection and placed in the queue.
Adds a destination to the grid. A new row will appear at the bottom of the grid.
Creates a copy of the destination selected in the grid. A new row will appear at the bottom of the grid.
Deletes the selected destination.
