Sources

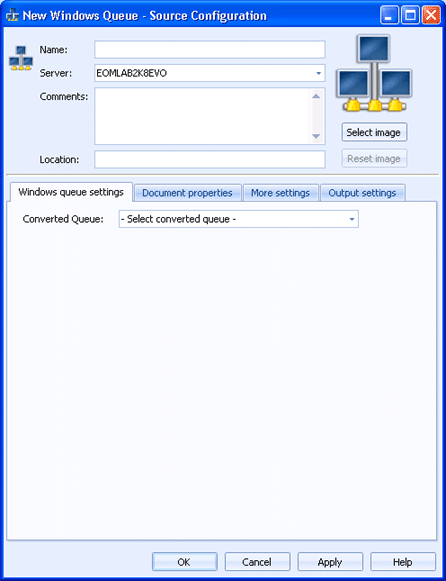

Use this tab to configure a Windows queue source. You can access this tab when you create or configure a Windows queue source.
Click an option you want to learn more about.
Specifies the name of the Windows queue source.
Specifies the Barr EOM server where the Barr EOM Input Service is located for this source. The source does not have to be on the same server as the Barr EOM Input Service.
Lists any general comments about the source.
Specifies any specific location information for the source.
Displays a Windows queue source image. To change the source image, click Select Image and choose the appropriate image file (.bmp, jpg, or png). The selected image will be compressed and scaled to 96x96 pixels. Changing this image will not change the smaller image that displays or the image that displays in the source tree. To change the image back to the default, click Reset Image.
Lists the Windows printers that are using the Barr port monitor, but have not had a Source created and associated with it. Once a Source has been created and associated, those printers will be removed from the list.
