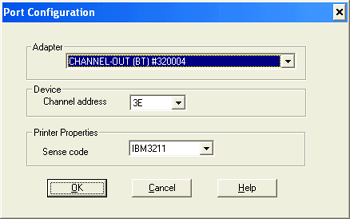

Use this dialog box to configure Barr PRINT390 ports after you define a channel printer. You can access this dialog box from the Add Printer Wizard.
Click an option you want to learn more about.
Selects the PRINT390 Channel-Out adapter for the device.
Selects the channel address of the device. The range is from 00 to FF. This device channel address must match the printer’s actual address. The address can be found on the Find Devices tab on the BARR/CHANNEL-OUT utility. Depending on your printer’s make and model, the address might also appear on the front of the printer, on hardware inside the printer, or on a printer software menu. If the printer was previously attached to a mainframe computer, you can obtain the address from mainframe personnel. If you cannot find the printer address, contact your printer service representative.
Selects the sense code that will be used as an IBM3211 or IBM3800 printer. The sense code selected must match the physical printer type you select on the printer's Device Settings tab. The default is IBM3211.
