You must have a DocBridge transform package
licensed for the necessary input formats and for IPDS output to use IPDS
destinations. Destinations

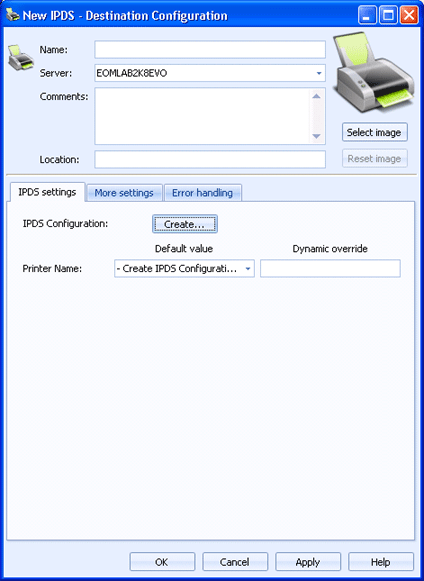

Use this tab to configure an IPDS destination. The IPDS destination is actually a transform operation, where the input file is transformed to an IPDS data stream and sent to an IPDS printer. You can access this tab when you create or configure an IPDS destination.
You must have a DocBridge transform package
licensed for the necessary input formats and for IPDS output to use IPDS
destinations.
Click an option you want to learn more about.
Specifies the name of the IPDS destination.
Specifies the Barr EOM server where the Barr EOM Output Service is located for this destination.
Lists any general comments about the destination.
Displays any specific location information for the destination.
Displays an IPDS destination image. To change the destination image, click Select Image and choose the appropriate image file (.bmp, jpg, or png). The selected image will be compressed and scaled to 96x96 pixels. Changing this image will not change the smaller image that displays or the image that displays in the destination tree. To change the image back to the default, click Reset Image.
Click the Create button to create a new IPDS transform configuration. If a configuration is already selected, an Edit button displays. Creating or editing the configuration displays the Configure Transform dialog box.
Displays the printers contained in the IPDS transform package. The printers are defined in the IPD (IPDS) filter profile on the Filter profiles tab. Multiple IPDS printers and connections can be configured in the same profile.
You can configure a default value and a dynamic override for this option. Default values are used to manage the documents as they are being sent to the destination. You can choose to dynamically override the default value using document properties. To enter an override value, right-click in the override text box and select Insert Document Property. A menu containing all of the available properties displays. You can select a property from the list or type the property name. If a property is selected and it contains a value, that value is processed instead of the default value.
