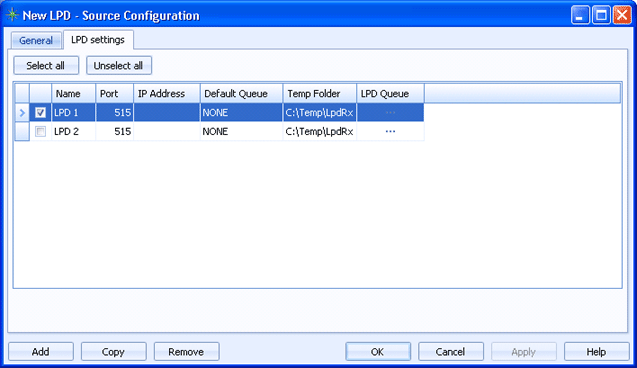

Sources
Use this tab to create multiple LPD sources at once. Documents received by these sources will be routed to Barr EOM.
Click an option you want to learn more about.
Selects all of the sources listed in the grid.
Clears any selected sources in the grid.
Click directly in the grid to configure the source.
Name column - Specifies the name of the LPD source.
Port column - Specifies the host's port number. The default value is 515.
IP Address column - Specifies the host’s IP address.
Default Queue column - Specifies the default queue which will process all requests made to unrecognized queues. All defined LPD queues are listed.
Temp Folder column - Specifies the location files are transferred into during the LPD session. When the session is complete they are put in the file store.
LPD Queue column - Click the Browse button to add multiple LPD queues using the Manage LPD Queue Subdevice tab pages. You will need to configure the options on the LPD queue settings tab.
Adds a source to the grid. A new row will appear at the bottom of the grid.
Creates a copy of the source selected in the grid. A new row will appear at the bottom of the grid.
Deletes the selected source.
