Page layout tab

Barr EOM

Use this tab to configure transform page layout options such as paper size, tray calls, simplex/duplex settings, and some rotation and scaling control of the output document.

You can access this dialog box when you configure a transform action for business rules or output processes or when configuring an IPDS destination.

Click an option you want to learn more about.

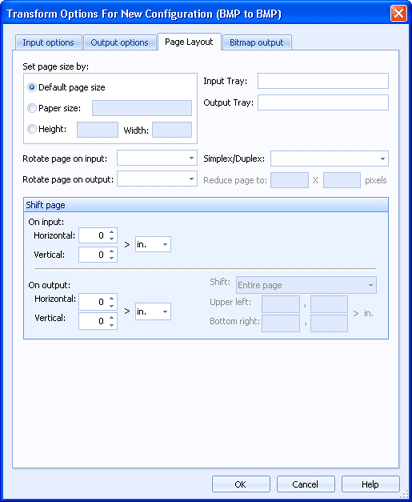

Page Layout Tab

What do you want to do?


Set page size by

Specifies the page size. This does not scale the page. It crops or expands the page size.

Top

Input tray

Specifies the tray name containing the paper to be used.

You can specify the tray name using text and document properties. To insert document properties, right-click in the text box, select Insert Document Property, and choose the appropriate properties. The document properties will display enclosed in brackets ([]).

Top

Output tray

Specifies the tray name where the output file will be printed.

You can specify the tray name using text and document properties. To insert document properties, right-click in the text box, select Insert Document Property, and choose the appropriate properties. The document properties will display enclosed in brackets ([]).

Top

Rotate page on input

Rotates the page on input according to the selected value. Use this option to rotate the page before any modifications have been made.

Top

Rotate page on output

Rotates the page on output according to the selected value. The rotation will be applied after all document modifications have been made.

Top

Simplex/Duplex

Determines if single-sided or duplex printing will be performed.

Top

Reduce page to

Reduces the page height and width to a specified pixel value. This option is only available when Convert to image is selected on the Output options tab.

Top

Shift page

If you choose to shift the contents on output, you can select which items should be shifted: the entire page (default), only those items within the specified rectangle, or all items that are partially within (intersecting with) the given rectangle. If you choose an option other than the default, you will need to specify the rectangle parameters in inches.
