Getting started using a Barr SNA connection

BARR/NJE

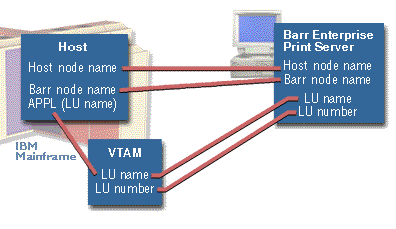

The Barr SNA connection type provides an easy way to manage your printing using BARR/NJE. With Barr SNA, you do not need an SNA gateway to interpret between the host spooler and the Barr software. The communication links, 802.2 LLC2, HPR/IP (Enterprise Extender), and SDLC, enable direct communication with your mainframe system, thereby simplifying the configuration process. You must configure the host spooler (JES2, JES3, or POWER), configure VTAM, install the DLC protocol (802.2 LLC2 connections only), and configure BARR/NJE by defining the connections between Barr nodes and adjacent host nodes. For JES2, you can also configure auto-start parameters for the host. To transfer jobs using a Barr SNA connection, the parameters displayed in the following image must match.

You must be a member of the local Administrators group to operate the NJE Configuration Utility. If you are assigned the Configure - NJE user access right on the computer to which you are trying to connect, but are not a member of the Administrators group, the NJE Configuration Utility will operate in read-only mode.

If you are not an
Administrator, you must be assigned the NJE Console user access rights to access NJE Console.

Configuring BARR/NJE

You must use the same node and LU information in all of the phases for configuring BARR/NJE.

If you are using BARR/NJE with a Barr SNA connection, perform these steps to get started.

  1. JES2

  2. JES3

  3. POWER
