Getting started using a CTC connection

BARR/NJE

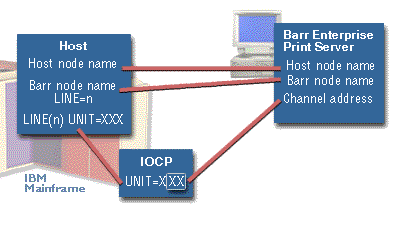

The Channel-to-Channel (CTC) connection type provides an easy way to manage your printing using BARR/NJE. With CTC, you must configure the CTC device to interpret between the host spooler and the Barr software. You must also configure the host spooler (JES2, JES3, or POWER) and BARR/NJE by defining the connections between Barr nodes and adjacent host nodes. To transfer jobs using a CTC connection, the parameters displayed in the following image must match.

You must be a member of the local Administrators group to operate the NJE Configuration Utility. If you are assigned the Configure - NJE user access right on the computer to which you are trying to connect, but are not a member of the Administrators group, the NJE Configuration Utility will operate in read-only mode.

If you are not an
Administrator, you must also be assigned the NJE Console user access rights to access NJE Console.

Configuring BARR/NJE

You must use the same information in all of the phases for configuring BARR/NJE.

If you are using BARR/NJE with a CTC connection, perform these steps to get started.

  1. JES2

  2. JES3

  3. POWER
