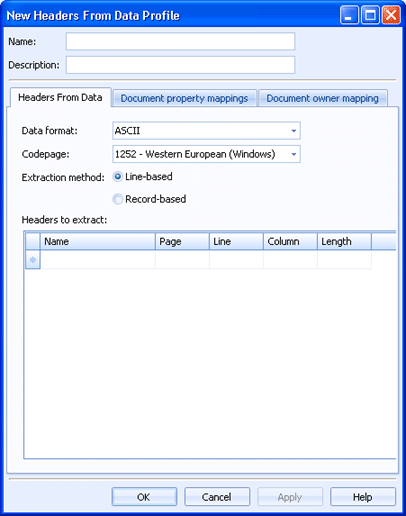

Use the Headers From Data tab to configure headers from data profiles. Headers from data profiles consist of information that Barr EOM can extract from specified location within the actual document data. Barr EOM can extract data from documents in various formats including ASCII, ASCII with ASA, S/370, and VBM.
Only advanced users and professional service engineers should configure these profiles. You can access this dialog box from the Document Properties Profile dialog box during source configuration.
Click an option you want to learn more about.
Specifies the name of the headers from data profile.
Specifies a description of the headers from data profile.
Specifies the document data format. You can choose ASCII, ASCII with ASA, S/370, or VBM.
Specifies the code page for the document.
Line-based - Searches for the header based on a particular line.
Record-based - Searches for the header based on a particular record, regardless of page breaks.
Specifies the headers to extract. These variables will appear on the Document property mappings tab and Document owner mapping tab. Click directly in the grid to edit.
Name column - Specifies the header field for the data to be placed in.
Page column - Specifies the page where data extraction will begin.
Line column - Specifies the line number in the file that contains the data.
Column column - Specifies the column where data extraction will begin. For ASCII with ASA carriage control files, the first column is not counted (in other words, the second column is treated as the first column).
Length column - Specifies how many characters to extract.
