Process Designer
Under Construction

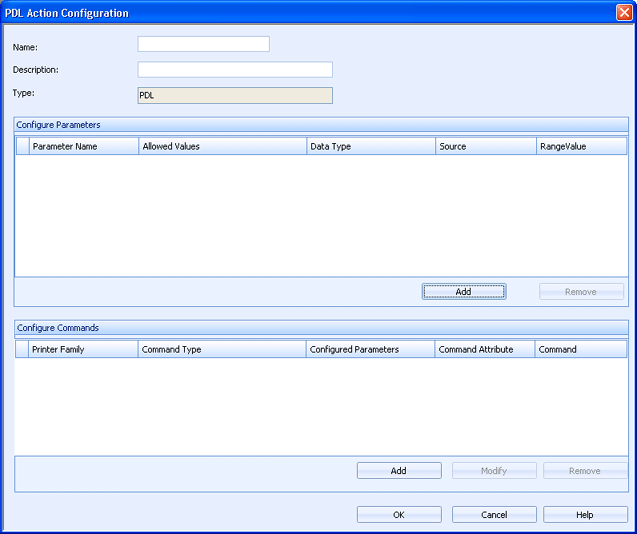

Use this dialog box to configure PDL actions. PDL actions are complex actions that can change the commands that tell the printer how to print a document. This is currently implemented for PJL (printer job language). You can access this dialog box when you configure a custom PDL action from the Process Designer.
Click an option you want to learn more about.
Specifies the name of the PDL action.
Provides a description of the PDL action.
Displays an action type of PDL.
Need info.
Add - Adds a parameter of one of the following types: boolean, document property, manual allowed values, range, or string. Examples of parameters include number of copies, location for staples, and so on.
Remove - Removes the selected parameter.
Need info.
You can click in the Configured Parameters, Command Attribute, or Command column to preview the configured commands.
Add - Adds a command to the PDL action. The Command Configuration dialog box is displayed. The commands represent the actual lines to be inserted such as "@PJL SET STAPLE = Parameter1". At runtime, the parameters are replaced with the correct values. One PDL action can have multiple commands for different printer families. For example, this allows setting up a single STAPLE action that works correctly with Canon, Xerox, Ricoh, and so on.
Modify - Modifies the selected command. The Command Configuration dialog box is displayed.
Remove - Removes the selected command.
