Business Rules

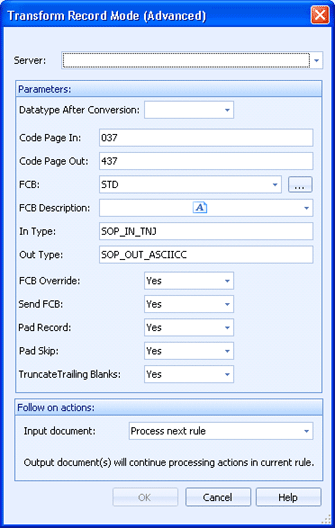

Use this dialog box to configure a business rule action to transform documents using record mode (advanced). This advanced option is used to perform custom conversions using DCO chains. This provides flexibility to specify code pages, carriage controls, record formats, etc. for the incoming document and the output desired.
If needed, you can use the Data
Conversion Utility to create custom DCOs for converting data formats.
This will not be necessary for most users. If you think this conversion
is necessary, please contact
Barr Systems Technical Support to ensure the data is converted properly.
Click an option you want to learn more about.
Specifies the licensed rules agent server that you would like to use.
Data type after conversion - Specifies the data type of the output documents.
Code Page In - Specifies the code page that represents the current status of the input document. The default format is 037 (EBCDIC).
Code Page Out - Specifies the code page that represents how the file is being transformed. The default format is 437 (ASCII).
FCB - Specifies the FCB resource that will control the vertical format of printed output. You can select a defined FCB in the drop-down list or click the ellipsis (...) button to create, modify, or import FCBs from the Resource Manager dialog box. FCBs are created using the FCB Resource dialog box. The default FCB is STD, a predefined FCB with 66 lines and channel stop 1 on line 1.
FCB Description - Provides a description of the selected FCB.
In Type - Specifies the input data type.
Out Type - Specifies the desired output data type.
FCB Override - Enables or disables overriding FCBs. Enabling this option causes FCBs in the beginning of the data to be ignored, functioning as if there were no FCBs in the data.
Send FCB - Enables or disables sending FCBs to the printer.
Pad Record - Enables or disables pad record. Enabling this option pads blank records with a space.
Pad Skip - Enables or disables pad skip to channel 1. Enabling this option pads blank records with a space.
Truncate Trailing Blanks - Enables or disables the truncating of trailing blanks.
Input document - Specifies the follow on actions for the input document (original document). You can choose to delete, retain, or process the next rule for the original document. The newly created documents (output documents) continue with the next rule action.
