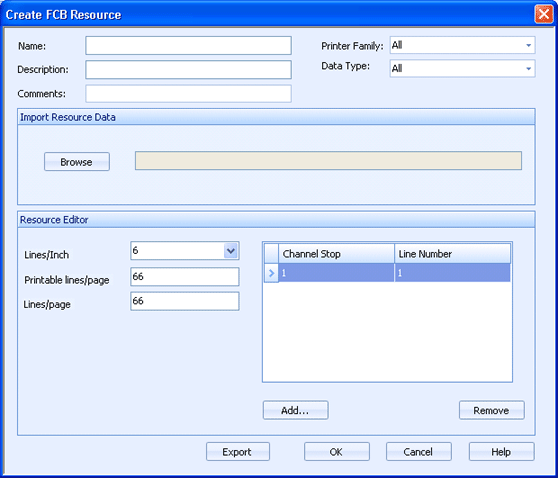

Use this dialog box to configure an FCB resource. You can access this dialog box when you configure an FCB resource in the Process Designer or the Resource Manager dialog box.
Click an option you want to learn more about.
Specifies the name of the FCB resource.
Provides a description of the FCB resource.
Displays any comments about the resource.
Specifies the printer families that will use this resource. Need more info.
Specifies the data types that will use this resource. Need more info.
Browse button - Allows for importing resource data. Imported files must be a .txt file.
Lines/Inch – Specifies the lines-per-inch, either 6 or 8.
Printable lines/page – Specifies the number of lines that will print per page. For example, if there are 66 Lines/Page and you enter 60 Printable lines/page, then you will print lines 1 through 60 on each page of the document.
Lines/page – Specifies the number of lines per page. This will change the FCB size.
Grid – Lists the currently defined channel stops. You can change the FCB’s sort order by clicking the Channel or Line Number column headings. When you click a column heading, the data of both columns will sort in ascending order based on the column selected.
Add button – Adds a channel stop.
Remove button – Deletes the selected channel stop.
Allows for exporting the resource. Exported resource files contain the resource name, type, description, and the resource data. The file is saved as a .txt file. The exported resources can be imported into another Barr EOM.
