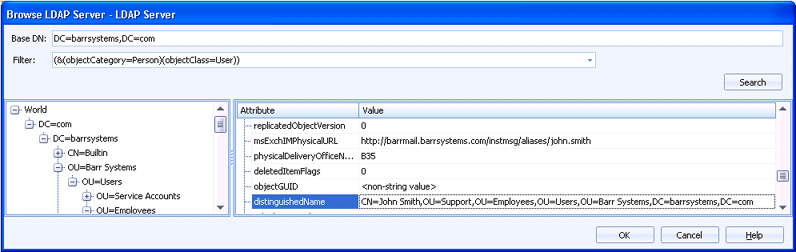

Browse LDAP Server dialog box

EOM Console

When adding LDAP users to Barr EOM, you must specify the LDAP server you will searching. Use this dialog box to specify the LDAP server that contains the users you want to add. Once the users are added, permissions and quotas can be assigned as needed. You can access this dialog box when adding LDAP users from the LDAP User dialog box.

Click an option you want to learn more about.

What do you want to do?

• Manage users

• Configure EOM Console security

• Configure security for destinations

• Configure security for sources

• Configure security for documents

Base DN

Specifies the DN (distinguished name) of the entry at which the search begins.

Filter

Specifies criteria to use in the search.

Search button

Performs a search of the specified server

Tree

Displays the LDAP directory in a tree view. When you click an entry in the tree, its attributes and values are displayed in the grid.

Grid

Displays the attributes and values for a user or group that you have selected from the LDAP directory.
