EOM Console

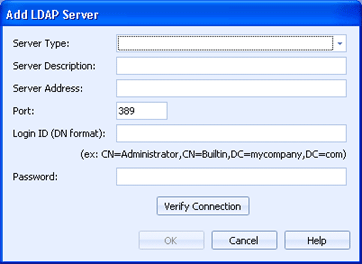

When you are adding LDAP users or an LDAP group to Barr EOM, you must specify the LDAP server that you will search. Use this dialog box to specify the LDAP server that contains the users or the group that you want to add. Once the users or group are added, permissions and quotas can be assigned as needed. You can access this dialog box from the LDAP User dialog box or from the LDAP Group dialog box.
Click an option you want to learn more about.
Specifies a server type of either Microsoft Active Directory Server or Generic LDAP Server. A server type of Generic LDAP Server operates correctly in a Microsoft Active directory environment. However, specifying Microsoft Active Directory Server if you are connecting to an ADS (Active Directory Server) offers the benefits of established security and relationships.
Indicates the name by which you want to identify this server.
Specifies the DNS (Domain Name System) name of the server. In most cases, you can simply specify the server address in domain name format, for example, barrsystems.com.
Identifies the standard IP port for the LDAP server.
Specifies the DN (distinguished name) of a user with administrative rights.
Contains this user’s password.
Confirms that a connection can be established with the information you have entered. You will see either Success or Failure to the right of the button.
