BARR/Web Interface allows users of the Barr Enterprise Print Server to access the server’s UI remotely, enabling them to monitor printers in their print center from the comfort of their office. In addition, users can view text in the print files, pause, cancel and redirect print jobs to different printers, and reprioritize jobs in the queue based on routing criteria.
The Web Interface is completely customizable, allowing you to view only the specific column headers and printers that you require. You also have the added security feature of maintaining control over which printers a particular user is able to view from their workstation. In addition, the UI for the Web Interface is virtually identical in look and feel to the existing Barr Enterprise Print Server Spool Window, which means you don’t need to train any of your current users on how to operate it.

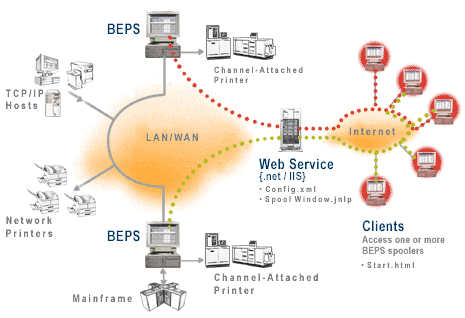

The Web Interface is a bridge between java-based clients and one or more Barr Enterprise Print Server installations. The Web service is installed on a separate computer, along with .NET CLR Acronym for Common Language Runtime. The runtime environment for Microsoft's .NET platform that executes the Microsoft Intermediate Language (MSIL). and IIS Acronym for Internet Information Server. Microsoft's brand of Web server software, utilizing HTTP to deliver World Wide Web documents.. The Web service computer will also host any ASP.NET pages used for configuration, configuration files, html pages used to launch the applets, and the JAR file containing the applets. TCP/IP connections are used to link the Web Interface to each Barr Enterprise Print Server site. Clients log on and change data by calling the Web service methods using the Java applets.
Browser-based spool window can be installed on any machine in network
Real time view of Remote Barr Enterprise Print Server sites
Enhanced troubleshooting and supervision of print centers
Remote text viewing
Restore from Retain
Printer state and routing control
Data set state and routing control
Customizable reprint ranges
Security – Barr Enterprise Print Server user and document rights, access control using IIS and Windows, SSL Acronym for Secure Sockets Layer. A protocol developed by Netscape Communications Corporation for ensuring security and privacy in Internet communications. SSL supports authentication of client, server, or both, as well as encryption during a communications session. While primary purpose of SSL is to enable secure electronic financial transactions on the World Wide Web, it is designed to work with other Internet services as well. This technology, which uses public key encryption, is incorporated into the Netscape Navigator Web browser and Netscape's commerce servers. if security certificate installed
Review the following links for more specific features.
The top section of the spool view contains a list of user-defined spool printers. The bottom section lists the documents to be processed. The spool maintains documents in an internal Barr-defined format. Documents are processed according to the sort order.
The spool can print or route a document as soon as the document and intended spool printer are in the Ready state, and the routing criteria matches. If the retain feature is enabled, documents are removed from the spool list and copied to the Retain folder after they print or you delete them. See the Barr Enterprise Print Server Help for information about enabling the retain feature.
The window’s many features make it easy to manage documents. The features you are able to use depend on the BARR/SPOOL user access rights assigned to you by your system administrator. See the Barr Enterprise Print Server Help for more information on user access rights.
You manage printing and routing by starting and stopping printers, specifying matching document and printer criteria, changing the printer or document states, and dragging the document’s page icon and dropping it onto the printer.
You can modify printer and document attribute values from the window by clicking a column and typing a value in the Edit Field dialog box.
You can configure the view by changing the column order, using filters, and showing or hiding designated printers.
You can use the Viewer utility to view or reprint documents.
The update rate is fixed at two seconds.
You can set up the Barr Enterprise Print Server to automatically save or retain copies of printed or deleted spool documents. If you need to print a retained document, you can restore it from Retain Window to the Spool Window.
You might want to enable the Retain Window feature so you can have backup A duplicate copy of data that you can use if the primary data is lost or destroyed. copies of documents after they print. The retain feature is also helpful while you are learning to use the Barr Enterprise Print Server because you can reuse your test files or recover from operator errors.
You can retain all files or selectively retain only certain files. You can use the Disposition (BARR_DISPOSITION) column in the spool view to easily identify which documents will be retained.
You can set up a retain folder and retention period from the Configuration Utility’s Spool and Retain tab. See the Barr Enterprise Print Server Help for more information.
The many features of retain view make it easy to manage retained documents. The retain view is similar to the spool view but does not include the spool printers list. The retain view offers the following features.
You can choose to display a subset of documents in the window based on the document date. This feature is useful if you are retaining hundreds of files. Choosing a document subset reduces the time it takes to display or scroll through a list of documents.
You can customize the view by changing the column order and using filters.
You can change document attribute values by clicking a column and typing a value in the Edit Field dialog box. When documents enter the Retain Window, their state is automatically set to Hold. To change the document state, right-click the document and select a new value from the list. For example, you can set document criteria to match the criteria of the desired printer, and then set the document state to Ready. Then, when you restore documents, they are ready to print.
You can use the Viewer utility to view or reprint retained documents. You can set the document state to Reprint with the Viewer before or after you restore the document.
The update rate is fixed at two seconds.
You can use the Viewer utility to view or reprint documents. The Viewer utility provides the following features.
Provides multiple access to data sets. You can view a data set that is already being viewed.
There is a 5-minute time-out period. After 5 minutes of inactivity, the document's state changes from Viewing back to its original state.
Select the viewing mode. You can view a document in text or binary mode with EBCDIC or ASCII translation. You can also select a different code page.
Copy document text to the Clipboard.
Go to a specific page.
Find document text.
Select the font for document viewing.
Print to a local printer.
Reprint documents.
Set the reprint range to a specific portion of the document.
